UHMWPE Sheets

Ultr high molecular weight polyethylene (UHMW-PE) is a kind of polyethylence with a molecular weight of more than 3 million, with the outstanding characteristics of high wear resistant, high impact strength, self-lubricating, corrosion resistant, shock absorption, low temperature resistant, non-toxic, anti stick, low water absorption, which gives it excellent performance, UHMWPE is the most best high performance engineering plastics.

Key words：

UHMWPE Sheets

E-Mail：

anny@flytoooo.com

Related Products

Product message

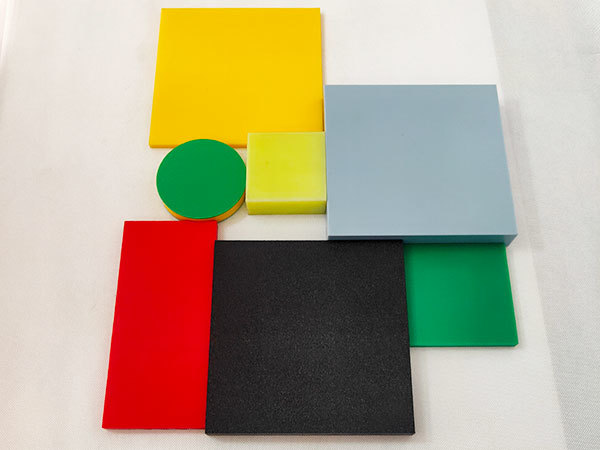

UHMWPE Sheets

Product description：Ultr high molecular weight polyethylene (UHMW-PE) is a kind of polyethylence with a molecular weight of more than 3 million, with the outstanding characteristics of high wear resistant, high impact strength, self-lubricating, corrosion resistant, shock absorption, low temperature resistant, non-toxic, anti stick, low water absorption, which gives it excellent performance, UHMWPE is the most best high performance engineering plastics.

SIZE：1000*2000mm/1220*2440mm/1550*4100mm/2050*4100mm/5030*1250mm/6200*1550mm

Thickness：6-200mm

Color：black/white/yellow/green/purple/blue, accept costomization.

Specification

Item	Test method	Unit	Value
Density	DIN 53479	g/cm³	0.92-0.98
Molecular weight		10⁶ g/mol
Elongation at break	ISO 527	%	＞120
Tensile modulus	ISO 527	Mpa	650
Yield stress	ISO 527	Mpa	27
Hardness	ISO 868	Shore D	60-76
Melting temperature	ISO 53736	℃	135
Water absorption	24h/RT	%	＜0.01
Friction Coefficient			0.01-0.2

Application：

1. In port and dock, as marine fender facing pad, dock bumper to make the cargo ship
2. For the bulk material handing such as coal, lime, cement, mineral power, salt, grain, as silo liner, chute liner, bunker liner
3. In construction machinery and agriculture machinery, used as ling sheet of bulldozer, truck, coulter or tractor
4. In construction and events area, as temporary road mats or outrigger pad for crane lift
5. In sports industry, as synthetic ice rink panel, barrier, fencing etc.
6. In paper industry as suction box cover, scraper blade, dewatering screen
7. In conveyor system duting the transportation machinery, as guide rail, conveyor belt, sliding block, fixing plate
8. In food industry, as household cutting board, chopping board in meat processing plant; In food machinery equipments used as star gear, bearing of filling machine

Related Products

irregular profiled bar

Benefits: Reduces costs Decreases downtime Reduces maintenance time Reduces material spillage Minimizes belt damage Settles bulk product faster Longer time in between replacement These impact bars have been specifically formulated and engineered to absorb and disperse the force of impact in load zones, preventing premature wear and damage to the belt.

irregular profiled bar

Temporary Road Mat

Product description：UHMWPE/HDPE mats as the temporary roads, avoid the damage to environment and roads, improve the work efficiency, reduce the effect cased on construction site. Advantages：Unique skid resistance surface; Tough durable working areas and temporary roads for heavy equipment and multiple vehicles; Protects against severe rutting and eco damage to ground and sensitive sites; Connection options for different terrain & equipment ; Non-conductive-ideal for use on transmission projects; Lower transport unit area cost than other composite mats

uhmwpe roller

Advantage: 1. Highest abrasion resistance (more than stainless steel) 2. Very Low co-efficient of friction, makes it slick in any weather. 3. Almost zero water absorption & impervious to most chemicals. 4. High notched impact strength. (unbreakable property) 5. Excellent self lubricating properties 6. Excellent chemical and corrosion resistance 7. Non-Toxic, Food Grade

UHMWPE roller

chain guide from China

UHMWPE SHEET ,as an engineering plastic with excellent performance ,its impact strength stands the top of all kinds of engineering plastic. uhmwpe sheet possesses the following properties: Excellent wear resistance High impact strength Good mechanical strength and stiffness Superior creep resistant performance Predominant machining property Low hydroscopicity Excellent inadhesion Predominant chemical properties Superior High-energy radiation resistance performance Excellent electric insulativity and dielectric property

chain guide accetp customization

chain guide

uhmwpe rod/hdpe rod

Ultra-high molecular weight polyethylene (UHMWPE),integrating the advantages of all plastic, is engineering plastic with fine performance and competitive price. And it has the highest value in the impact strength, wear resistance, corrosion resistance, self-lubrication and low temperature resistance. Moreover, it's also non-toxic, non-sticky, anti-static, moisture-resistance, low water absorption, low coefficient of friction, low density, easy to process, noiseless, flame retardant, uvioresistant, etc. We can provide various UHMWPE ROD accoring to differenent requirement in different application. Features ： 1. abrasive resistance which always have in thermoelectricity polymer. 2. best shock resistance even in low temperature. 3. low frictional factor, and well sliding bearing material 4. lubricity( no caking, in adhesion) 5. best chemical corrosion resistance and stress craze resistance 6. excellent machinery process ability 7. lowest water absorption(<0.01%) 8. paragon electric insulativity and antistatic behavior 9. nice high energy radioactive resistance 10. density is lower than other thermoplastics (< 1g/m3) 11. long using temperature range: -260°C--80°C
